Pressure Tanks / Hose sets
Pressure Tanks
Pressure tanks are designed for low or mid viscosity applications under the pressure of 0.3 MPa.
Specifications

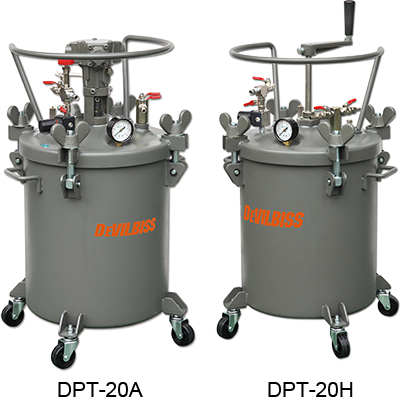

| DPT-20A | With air motor agitator |
|---|---|
| DPT-20H | With manual agitator |
| Max. pressure | 0.3 MPa |
| Capacity | 20L |
| Fluid passage material | Stainless steel, Aluminum, Brass |
Standard accessories : Stainless steel typed inner container, rollers.
Remote pressure feed cup
KB-4006 Hose kit for remote pressure feed cup
KB-545-SS Remote pressure feed cup
For 2 liters
Stainless steel
KB-555 Remote pressure feed cup
For 2 liters
Aluminum
Hose sets
Air hose set (Orange) with G1/4 nut on both sides.
| Part No. | I.D | O.D | Length | Material |
|---|---|---|---|---|
| DAH–10 | 6.5 mm | 10mm | 10 m | Polyurethane with reinforcing fiber |
| DAH–20 | 20m | |||
| DAH–30 | 30m |
Fluid hose set (Clear) with G1/4 nut on both sides.
| Part No. | I.D | O.D | Length | Material |
|---|---|---|---|---|
| DPH–10–2 | 7.5 mm | 10.5mm | 10 m | Polyurethane with reinforcing fiber(grounded) & Nylon |
| DPH–20–2 | 20m | |||
| DPH–30–2 | 30m |
Fluid hose set (Clear) with G1/4 nut on one side, and G3/8 nut on side other.
| Part No. | I.D | O.D | Length | Material |
|---|---|---|---|---|
| DPH–10–3 | 7.5 mm | 10.5mm | 10 m | Polyurethane with reinforcing fiber(grounded) & Nylon |
| DPH–20–3 | 20m | |||
| DPH–30–3 | 30m |
Twin hose set / DTW- ○ -2：with G1/4 on one side, and G3/8 on side other.
Twin hose set / DTW- ○ -3：with G3/8 nut on both sides.
| Part No. | hose | I.D | O.D | Length | Material |
|---|---|---|---|---|---|
| DTW-2 | Air | 6.5mm | 10mm | 1.86m | Polyurethane with reinforcing fiber |
| Fluid | 7.5mm | 10.5mm | 2m | Polyurethane with reinforcing fiber(grounded) & Nylon | |
| DTW–6 | Air | 6.5mm | 10mm | 5.86m | Polyurethane with reinforcing fiber |
| Fluid | 7.5mm | 10.5mm | 6m | Polyurethane with reinforcing fiber(grounded) & Nylon | |
| DTW–10 | Air | 6.5mm | 10mm | 9.86m | Polyurethane with reinforcing fiber |
| Fluid | 7.5mm | 10.5mm | 10m | Polyurethane with reinforcing fiber(grounded) & Nylon |
* Air hose : with G1/4 nut on both sides.
